PPPC121LFBN-RC
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
PPPC121LFBN-RC
Datasheet:
Description:

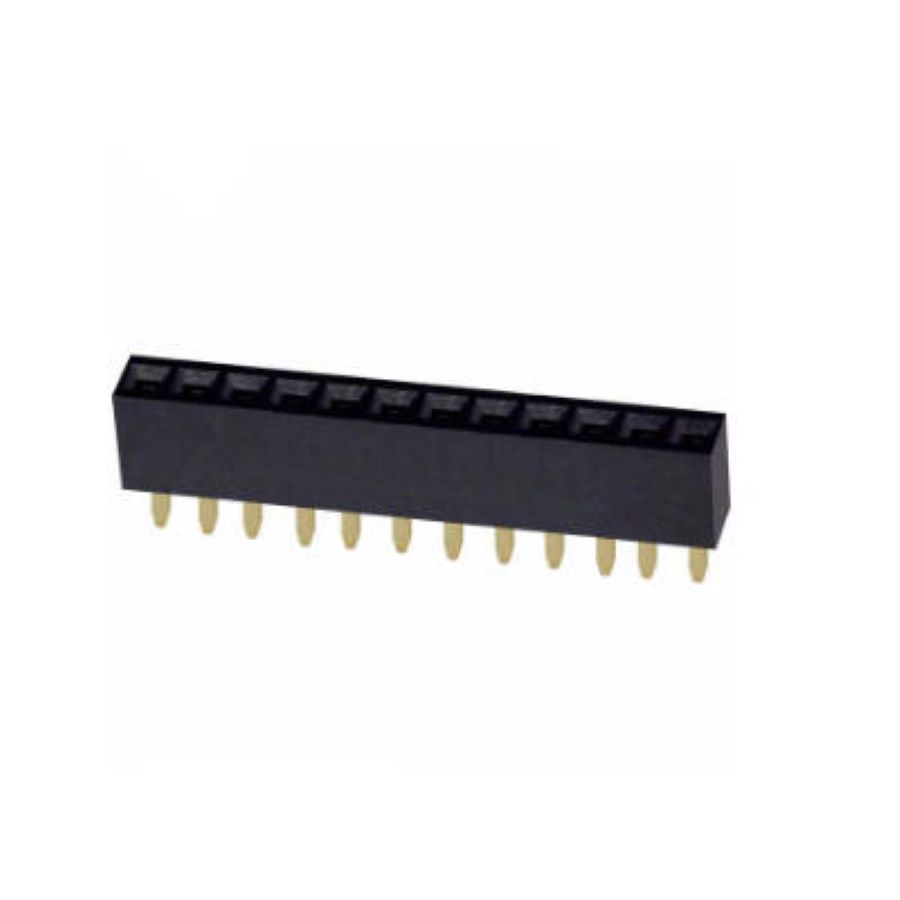

Headers and Wire Housings Through Hole Header, Socket Number of Positions:12 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 31 mm |
| Width | 2.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.5 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Color | Black |
| Connector Type | Header, Socket |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Mating Post Length | 8.51 mm |
| Termination Post Length | 3.2 mm |
Stock: 8591
Distributors
pcbx
pcbxUnit Price$0.46908
Ext.Price$0.46908
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46908 | $0.46908 |
| 10 | $0.40046 | $4.00460 |
| 25 | $0.37929 | $9.48225 |
| 50 | $0.35924 | $17.96200 |
| 100 | $0.34025 | $34.02500 |
| 300 | $0.32145 | $96.43500 |
| 500 | $0.30369 | $151.84500 |
| 1000 | $0.28918 | $289.18000 |
| 3000 | $0.27322 | $819.66000 |
| 5000 | $0.25814 | $1290.70000 |
| 10000 | $0.25297 | $2529.70000 |
